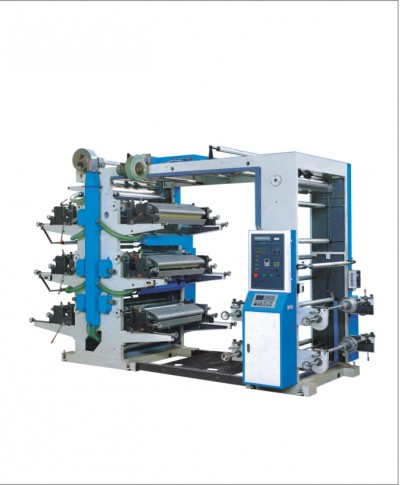

YT6600 Six color flexible printing machine

YT6600 Six color flexible printing machine

This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Characteristics
1.Easy operation, flexible starting accurate color register.
2.The meter counter can set printing quantity according to the requirement. Stop the machine automatically at the set quantity or when the material is cut off.
3.Lift and lower the printing plate cylinder manually, It will automatically stir the printing ink after lifting
4.The printing ink is spread by the knurled cylinder with even ink color.
5.Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.3600 continuous and adjustable longitudinal register device.
7.The imported frequency control of motor speed adapts to different printing speeds.
8.There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.









Model of Machine YT-6600 YT-6800 YT-61000
Max.Width of Substrate 600mm 800mm 1000mm
Max.Printing Width 560mm 760mm 960mm
Range of printing Length 191-914mm 191-914mm 191-914mm
Max.Diameter of web ф450mm ф450mm ф450mm
Printing Speed 5-50m/min 5-50m/min 5-50m/min
Plate Thickness
(both-side adhesive tape included)
2.38mm 2.38mm 2.38mm
Total Power 13kw 15kw 18kw
Weight of Machine 3500kg 4200kg 5000kg
Overall Dimensions 3900×1660×2950mm 3900×1860×2950mm 3900×2060×2950mm
